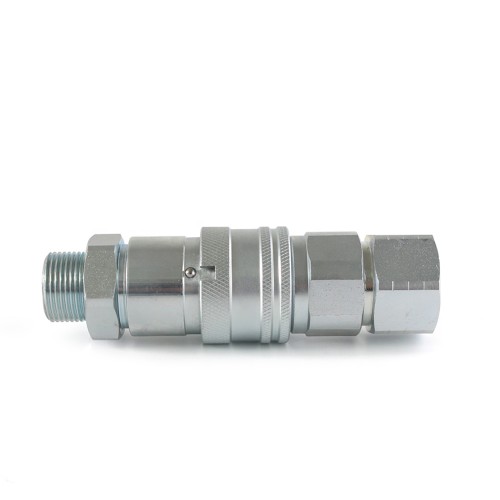

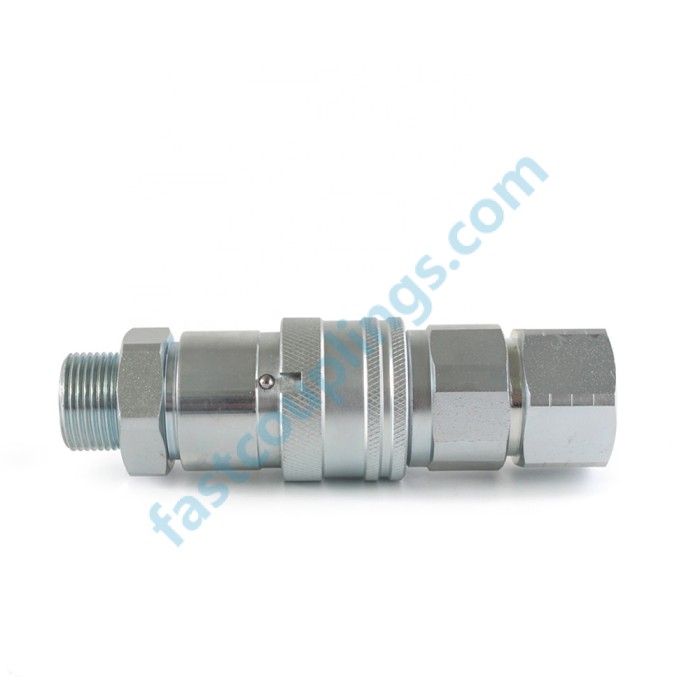

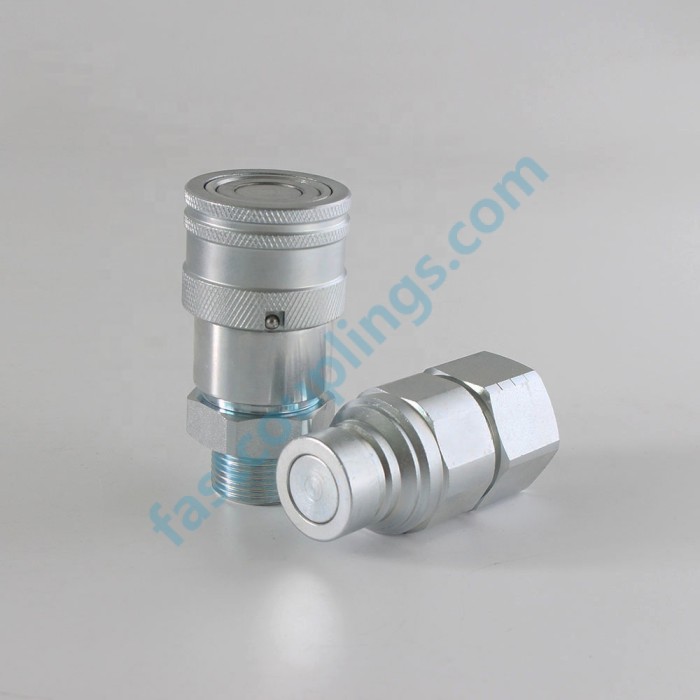

ISO16028 Flat Face Type Male Thread Connect Hydraulic Quick Release Couplings

Compatibility:

PARKER FEM, FASTER FF, STUCCHI FIRG, AEROQUIP FD89, EATON FD89, HANSEN FF, FOSTER FF (FFI-2FFI), CEJN X62, SAFEWAY FF49, SNAP-TITE 74, DIXON HT, TOMCO FE, etc.

Material: Steel

Surface Treatment: White Zinc Plated, Color Zinc Plated or Zinc Nickel Plated

Working Temperatures: -20 °C to +120 °C

Seal: NBR

Thread: BSPP(G) or NPT female and male thread, other thread available for customized order

Size: 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Valve Type: Flat Face Valve

Markets:
• Construction
• Mobile equipment
• Agriculture

Features:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 16028
• Steel nipple body is hardened for durability

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments

Product Video:
