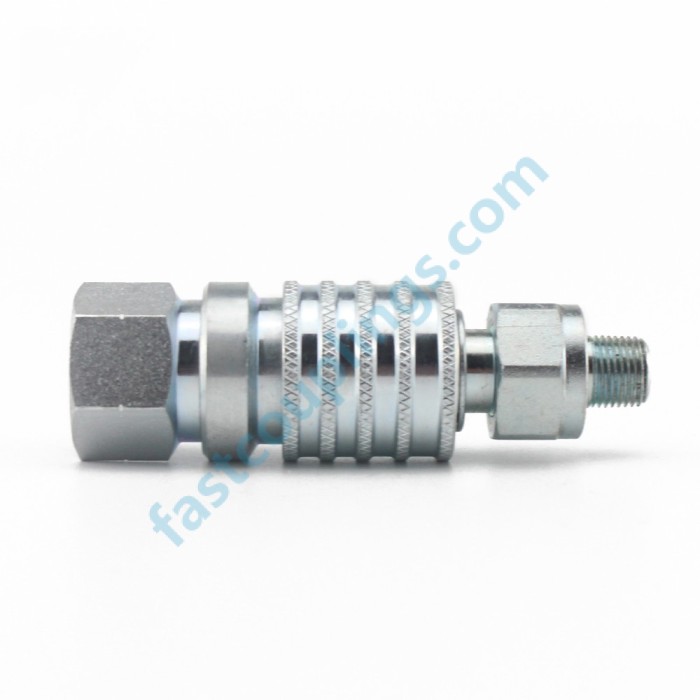

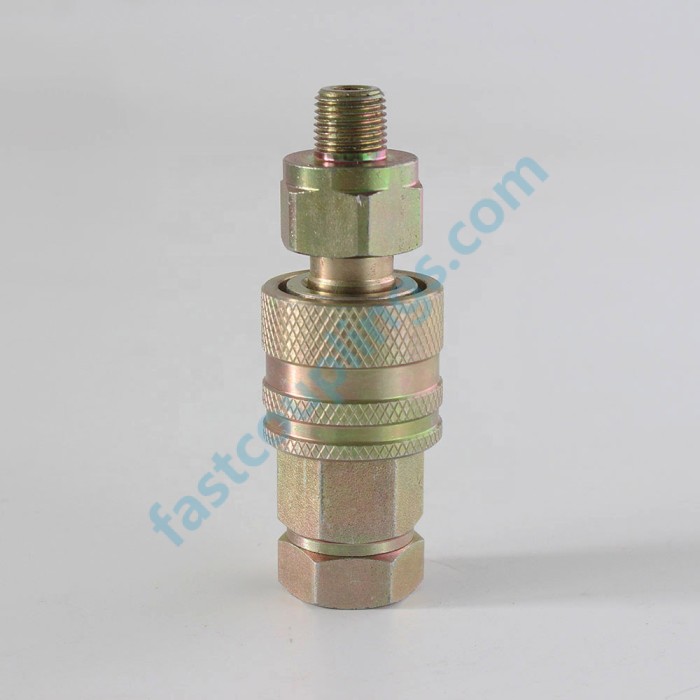

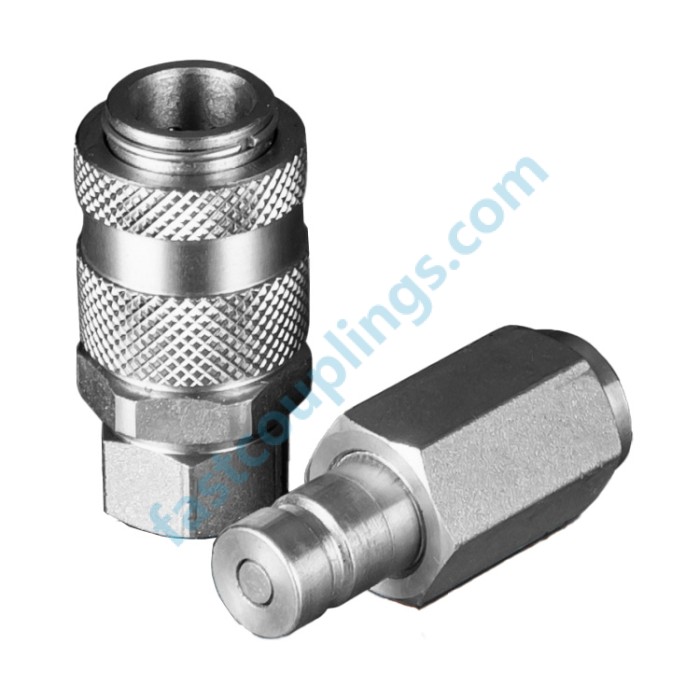

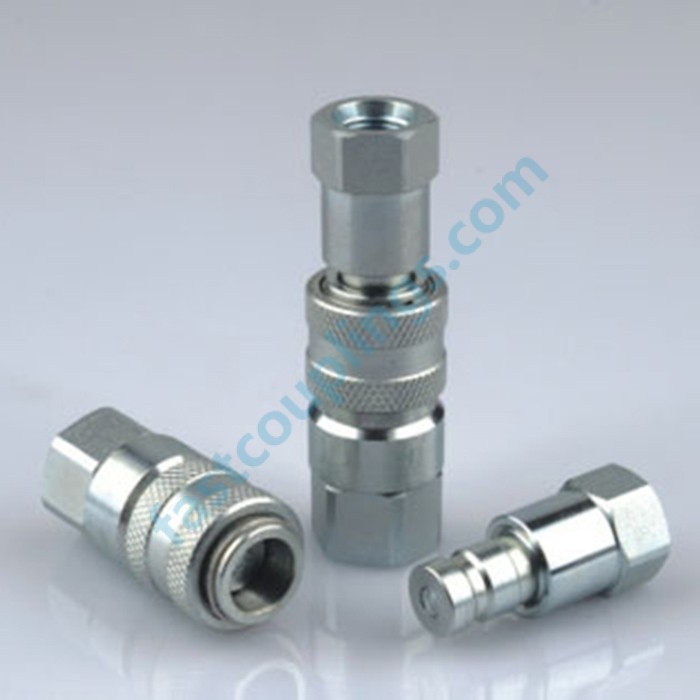

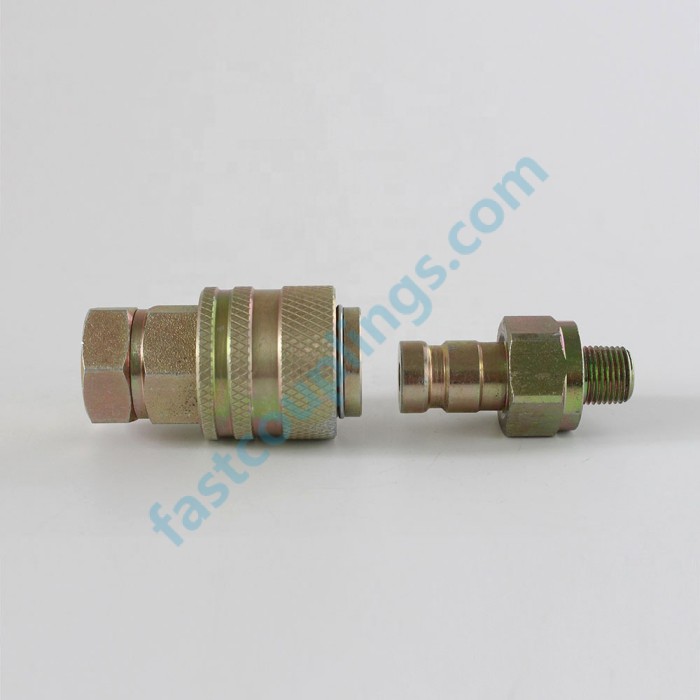

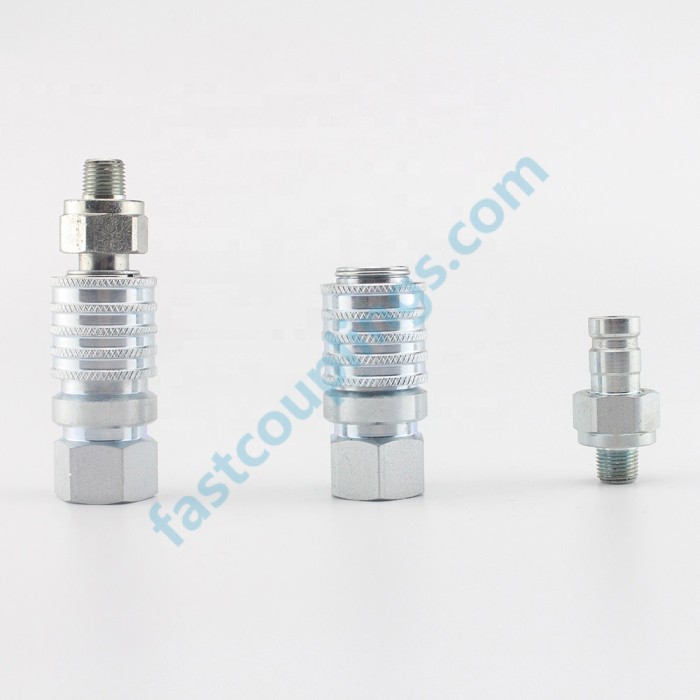

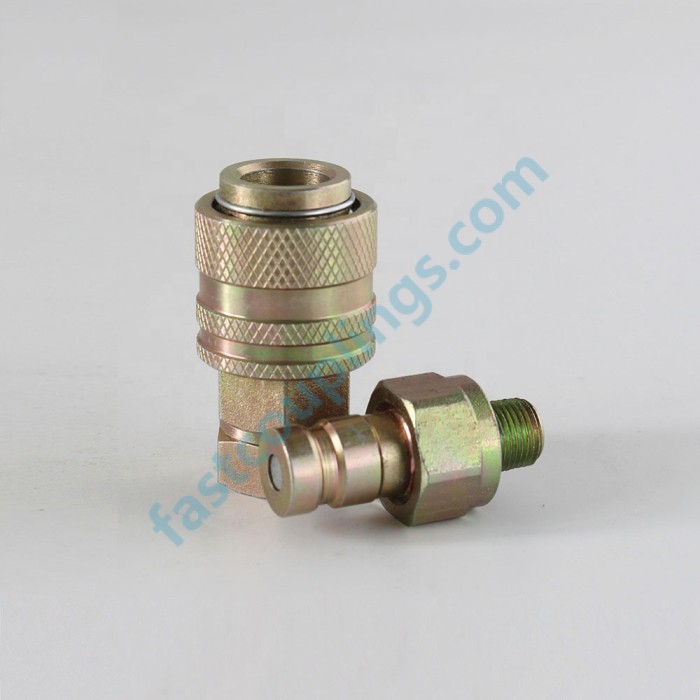

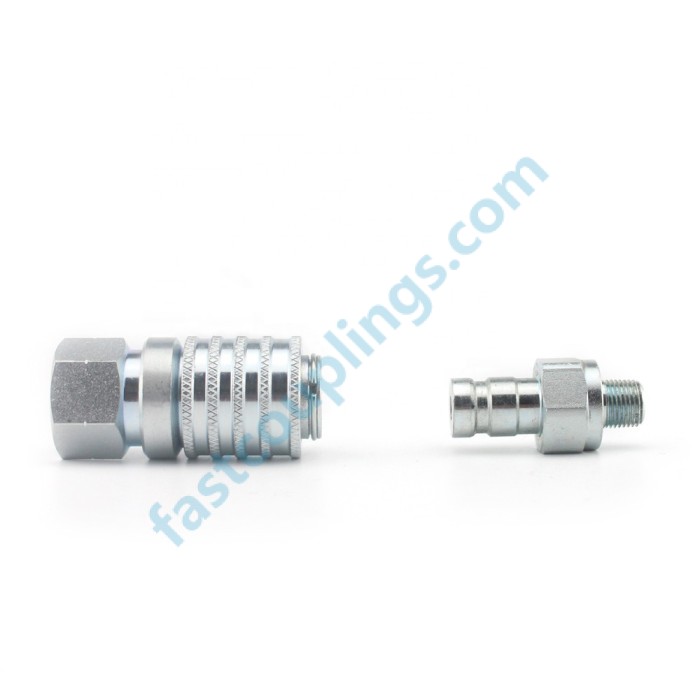

Parker PD Series Flat Face Type ISO15171-1 Diagnostic Quick Couplings and Test Point Nipples

Compatibility:

PARKER PD, FASTER DF,AEROQUIP FD90, etc.

Material: Steel

Surface Treatment: White Zinc Plated, Color Zinc Plated or Zinc Nickel Plated

Working Temperatures: -20 °C to +120 °C

Seal: NBR

Thread: BSPP(G) or NPT female thread, other thread available for customized order

Size: 1/8" 1/4"

Valve Type: Flat Face Valve

Markets:
• Construction
• Mobile equipment
• Agriculture

Features:
• Globally interchangeable with other manufacturer's quick couplings
• Steel nipple body is hardened for durability

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments

Product Video:
